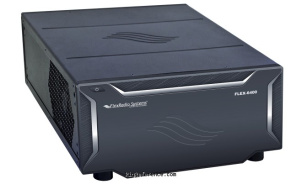

The FlexRadio FLEX-6400 model is designed for the Ham who wants to operate the radio exclusively as a server from PC or laptop. This has no controls on the rigs itself. This model has two independent receivers. Identical to the FlexRadio FLEX-6400M, which ads manual controls on the front.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- 0.5 p.p.m. TCXO
- Tuning steps
- 1 Hz
- Memories
- ?
Receiver
- RX-range
- 30 kHz – 54 MHz
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY DV
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR, Direct Digital Sampling ADC sampling rate: 122.88 Msps, ADC resolution: 16 bit.
- IF-frequencies
- ?
- Image rejection
- ≥ 100 dB
- Audio output
- 1W diagnostic speaker
Transmitter
- TX-range
- 160-6 m
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY DV
- RF-output
- 1-100W SSB, CW, FM, RTTY, DIGITAL; 1-25W AM
Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ± 15%
- Current drain RX
- 1.7 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 350 × 171 × 337 mm (13.78 × 6.73 × 13.27 in)
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2017 and 2024 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- SDR (Software Defined Radio)
Ethernet
2 × USB 2.0 - Accessories
- -
- RigReference ID
- 6319
- MPN
- FLEXRADIO-FLEX-006400
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-6400. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the FlexRadio FLEX-6400 is around:
- USD 166 ~ USD 308
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
