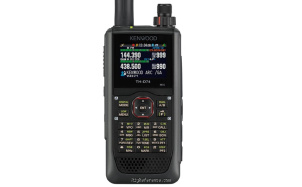

Kenwood TH-D74

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

20 Hz

Memories

1000 channels in 1 bank(s)

Receiver

RX-range

0.1-253 / 255-262 / 266-271 / 275-380 / 382-412 / 415-524 MHz

Modulations

AM   FM   N-FM   W-FM   CW   USB   LSB   D-STAR

Sensitivity

AM (10 dB S/N)
0.3-0.52 MHz: 4 µV
0.52-1.8 MHz: 1.59 µV
1.8-54 MHz: 0.63 µV
54-76 MHz: 1.12 µV
118-174 MHz: 0.5 µV
200-250 MHz: 0.63 µV
382-412 MHz: 1.12 µV
415-524 MHz: 1.12 µV
FM (12 dB SINAD)
28-54 MHz: 0.32 µV
54-76 MHz: 0.56 µV
118-144 MHz: 0.36 µV
144-148 MHz: 0.18 µV (Band A), 0.19 µV (Band B)
148-175 MHz: 0.36 µV
200-222 MHz: 0.36 µV
225-250 MHz: 0.36 µV
382-400 MHz: 0.5 µV
400-412 MHz: 0.36 µV
415-430 MHz: 0.36 µV
430-450 MHz: 0.18 µV (Band A), 0.2 µV (Band B)
450-490 MHz: 0.36 µV
490-524 MHz: 0.63 µV
N-FM (12 dB SINAD)
144-148 MHz: 0.22 µV (Band A), 0.24 µV (Band B)
430-450 MHz: 0.22 µV (Band A), 0.25 µV (Band B)
W-FM (12 dB SINAD)
76-95 MHz: 1.59 µV
95-108 MHz: 2 µV
SSB (10 dB S/N)
1.8-54 MHz: 0.4 µV
54-76 MHz: 0.79 µV
144-148 MHz: 0.16 µV
222-225 MHz: 0.2 µV
430-450 MHz: 0.16 µV
DV (PN9/GMSK, 4.8 kbps, BER 1%)
144-148 MHz: 0.2 µV
430-450 MHz: 0.2 µV

Selectivity

FM: 12 kHz (-6 dB), 30 kHz (-50 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

400 mW at 10% distortion / 8 ohms (at 7.4 VDC)

Transmitter

TX-range

2 m / 70 cm

Modulations

FM   N-FM   D-STAR

RF-output

50 mW ... 5 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

6-9.6 V DC (battery) or 11-15.9 V DC (external)

Current drain RX

48-310 mA

TX

0.4-2 A

Physical

Dimensions (w×h×d)

56 × 120 × 34 mm (2.20 × 4.72 × 1.34 in) with KNB-75L

Weight

345 gr (12.2 oz)

Form factor

Handheld

Manufactured

Between 2016 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL, DCS, Micro-SD card, Micro-USB, Bluetooth, Built-in GPS and APRS.
Built-in bar antenna for 0.1-10 MHz RX. Color TFT. Audio equalizer. Hi-performance DSP.

Accessories

-

RigReference ID

6333

MPN

KENWOOD-TH-D000074

Manuals, diagrams and brochures

Kenwood TH-D74A Brochure PDF - 3.97 MB, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TH-D74. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TH-D74 in Good condition is around:

• USD 420
