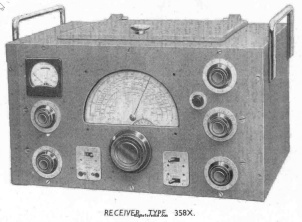

Eddystone 358

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Eddystone 358 rigs and spare parts on eBay

The Eddystone 358 is a Superheterodyne receiver covering 40 kHz - 31 MHz in 10 bands. The IF frequency is 450 kHz and the audio output is 1.5 W. It requires Mains power. Dimensions are 305 × 520 × 342 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 40 kHz - 31 MHz in 10 bands
Modulations: AM CW
Sensitivity: 3 µV above 1500 kHz
8 µV for lower frequencies
Selectivity: 2 kHz @ -2.5 dB
5 kHz @ -35 dB
Filters: ?
Receiver system: Superheterodyne
IF-frequencies: 450 kHz
Image rejection: ?
Audio output: 1.5 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 520 × 305 × 342 mm (20.47 × 12.01 × 13.46 in)
Weight: 22.90 kg (50.5 lbs)
Form factor: Base Station
Manufactured: Between 194x and 194x in Great Britain

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6346
MPN: EDDYSTONE-000358

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Eddystone 358 Series Receivers PDF - 2.56 MB, submitted by RigReference

: Upload relevant documents
