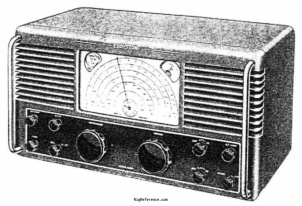

Eddystone 504

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Eddystone 504 rigs and spare parts on eBay

The Eddystone 504 is a desktop shortwave receiver covering 0.6-30 MHz in 5 bands. It employs a superheterodyne receiver system with a 450 kHz IF frequency and features a noise limiter and S-meter. The audio output is 3 W. Dimensions are 222 × 426 × 254 mm. Power requirements are mains, consuming 65 W during reception.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.6-30 MHz in 5 bands
Modulations: CW
Sensitivity: ≥ 2 µV
Selectivity: 5 kHz
300 Hz with optional crystal filter
Filters: ?
Receiver system: Superheterodyne
IF-frequencies: 450 kHz
Image rejection: ?
Audio output: 3 W

Connections

Antenna: -
Impedance: 70Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: 65 W
TX: -

Physical

Dimensions (w×h×d): 426 × 222 × 254 mm (16.77 × 8.74 × 10.00 in)
Weight: ?
Form factor: Base Station
Manufactured: Between 1946 and 194x in Great Britain

Other features

Usage: Amateur / Ham radio operators
Features + options: Noise limiter
S-meter
Accessories: -
RigReference ID: 6349
MPN: EDDYSTONE-000504

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Eddystone 504 Service Information PDF - 2.90 MB, submitted by RigReference
