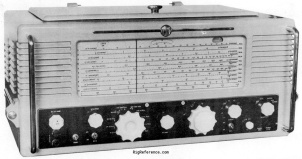

This set was designed for the UK military and is also known as the International Marine Radio 54 or IMR.54. The IMR.54 receiver is a high class marine communication receiver covering the requirements of a long-wave, medium-wave and short-wave main receiver in all compulsorily equipped ships.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 15 kHz - 31 MHz in 10 bands
- Modulations
- AM CW
- Sensitivity
- 15-160 kHz: 4-20 µV (10 dB S/N)
160-1500 kHz: 6-10 µV (10 dB S/N)
1.5-4 MHz: 1.5-3 µV (10 dB S/N)
4-10 MHz: 2-6 µV (10 dB S/N)
10-31 MHz: 2-10 µV (10 dB S/N) - Selectivity
- Wide, Intermediate, Narrow and Very narrow settings.
500 Hz ... 25 kHz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- -
- Impedance
- 72Ω
- Other
- -
Electrical
- Power requirements
- Mains (110-250 V AC)
- Current drain RX
- 82 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 747 × 385 × 451 mm (29.41 × 15.16 × 17.76 in)
- Weight
- 60.90 kg (134.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1952 and 195x in Great Britain
Other features
- Usage
- Marine / Navy
- Features + options
- Automatic volume control
- Accessories
- -
- RigReference ID
- 6350
- MPN
- EDDYSTONE-000700
Manuals, diagrams and brochures
- International Marine Radio IMR54 Instruction Manual PDF - 28.03 MB, submitted by RigReference
- IMR54 Alternative service manual PDF - 14.67 MB, submitted by RigReference
- IMR54 Circuit Diagram PDF - 2.62 MB, submitted by RigReference
- IMR54 Parts List PDF - 14.29 MB, submitted by RigReference
