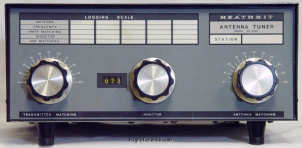

The Heathkit SA-2040 is an HF antenna tuner. It covers 3.5-30 MHz for both receive and transmit. The RF output is selectable between 200 W and 2000 W. Dimensions are 146 × 368 × 352 mm. The SA-2040 requires no external power source.
General characteristics
- HAM bands
- 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- No power required
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 368 × 146 × 352 mm (14.49 × 5.75 × 13.86 in)
- Weight
- 6.80 kg (15.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1979 and 1983 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6367
- MPN
- HEATHKIT-SA-002040
Manuals, diagrams and brochures
- Heathkit SA-2040 Antenna Tuner PDF - 6.97 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit SA-2040. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
