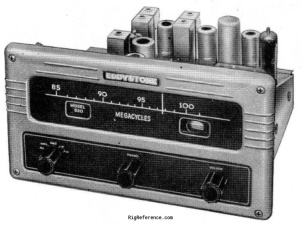

The Eddystone 820 is designed for reception of broadcast transmission in the VHF band (87.6-100 MHz) and facilities are also provided for reception of one spot frequency in the LF band and two spot frequencies in the MF band.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
150-250 / 600-1550 kHz / 87.5-100 MHz
Modulations
AM   FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
465 kHz
Image rejection
?
Audio output
Requires external speaker

Connections

Antenna
Clamps / screws
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 195x and 195x in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6380
MPN
EDDYSTONE-000820

Manuals, diagrams and brochures

Eddystone 820 Instruction Manual PDF - 1.69 MB, submitted by RigReference
