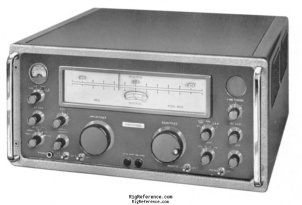

Marconi H2301

HF Receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Marconi H2301 rigs and spare parts on eBay

Find the Marconi H2301 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

High-stability communications receiver covering 500 kHz - 30.5 MHz in AM, CW and SSB. With the optional H5011 adaptor, FSK mode is also supported. This model is identical to the Eddystone 880/3.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.5-30.5 MHz in 30 bands
Modulations: AM CW SSB FSK
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: Clamps / screws
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: Max 100 W
TX: -

Physical

Dimensions (w×h×d): 483 × 222 × 400 mm (19.02 × 8.74 × 15.75 in)
Weight: 40.00 kg (88.3 lbs)
Form factor: Base Station
Manufactured: Between 1964 and 196x in Great Britain

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6388
MPN: MARCONI-H002301

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Marconi H2301 Service Manual PDF - 4.35 MB, submitted by RigReference

: Upload relevant documents
