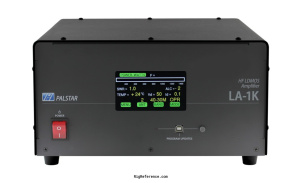

The Palstar LA-1K is a 1.8-54 MHz / 160-6 m linear amplifier. RF output is SSB: 1000 W PEP, FM/RTTY: 500W, AM: 275 W. It features up-gradable firmware, a color TFT touch screen and auto band switching. The LA-1K requires 100-260 V AC power and has a maximum current drain of 42 A during transmit. It weighs 12.25 kg.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 1.8-54 MHz / 160-6 m
- Modulations
- All mode
- RF-output
- SSB: 1000 W PEP, FM/RTTY: 500W, AM: 275 W
Connections
- Antenna
- SO-239 + N-type
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 100-260 V AC
- Current drain RX
- ?
- TX
- 42 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 12.25 kg (27.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2018 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Up-gradable firmware
Color TFT touch screen
Auto band switching - Accessories
- -
- RigReference ID
- 6413
- MPN
- 9005800
Manuals, diagrams and brochures
- Palstar LA-1K Leaflet Feb 2018 PDF - 1.80 MB, submitted by RigReference
- Palstar LA1K Techical Manual PDF - 2.96 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Palstar LA-1K. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Palstar LA-1K is around:
- USD 2512.00
These estimates are based on the following prices:
