Anytone AT-588 UHF

Mobile UHF transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

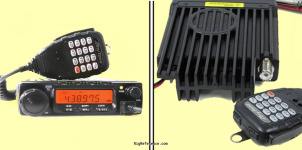

Anytone AT-588 - UHF Mobile Transceiver - Submitted by Pancho Cheja

Find Anytone AT-588 UHF rigs and spare parts on eBay

Find the Anytone AT-588 UHF on Amazon

The Anytone AT-588 UHF is a mobile UHF transceiver. It covers 400-490 MHz for both transmit and receive with a frequency stability of ±2.5 p.p.m. Tuning steps are selectable from 5 to 50 kHz. The radio features an image rejection of ≥60 dB, an RF output of 10/25/45 W, and an audio output of 2 W @ 10% THD. It includes CTCSS/DCS and has 1 memory bank with 200 channels. Power requirements are 13.8 V DC (±15%). Dimensions are 47 × 145 × 190 mm and it weighs 1.2 kg.

General characteristics

HAM bands: 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 400-490 MHz
Modulations: AM FM N-FM
Sensitivity: W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD)
Selectivity: 12.5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ≥ 60 dB
Audio output: 2 W @ 10% THD

Transmitter

TX-range: 400-490 MHz
Modulations: FM N-FM
RF-output: 10 / 25 / 45 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC (±15%)
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 145 × 47 × 190 mm (5.71 × 1.85 × 7.48 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 201x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS / DCS
Accessories: -
RigReference ID: 6416
MPN: ANYTONE-AT-000588-UHF
