KDK FM-50 10LA

Mobile 6m Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

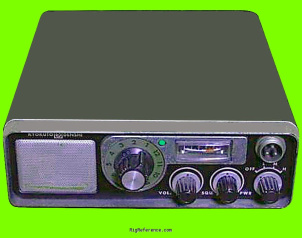

KDK FM-50 10LA - Front View - Submitted by Pancho Cheja

Find KDK FM-50 10LA rigs and spare parts on eBay

The KDK FM-50 10LA is a Mobile 6m Transceiver. It features a receiver system of XTAL and has 1 memory bank with 12 channels. The RF output is High: 10 W, Medium: 1 W, Low: 0.1 W. It requires 12V DC power and has a maximum current drain of 2.5 A during transmit. The transceiver weighs 2 kg.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: ?
Memories: 12 channels in 1 bank(s)

Receiver

RX-range: 6m
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 6m
Modulations: FM
RF-output: High: 10 W, Medium: 1 W, Low: 0.1 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: ?
TX: Max 2.5 A

Physical

Dimensions (w×h×d): ?
Weight: 2.00 kg (4.4 lbs)
Form factor: Mobile
Manufactured: Between 197x and 197x in discontinued in the early seventies

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6427
MPN: KDK-FM-000050-10LA

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
