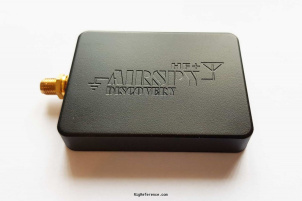

The Airspy HF+ Discovery is a headless receiver covering 0.005-31 / 60-260 MHz with a frequency stability of 0.5 p.p.m. and tuning steps of 1 p.p.b. It features tracking RF filters, direct sampling SDR receiver system and an image rejection of 120 dB. The HF+ Discovery requires 5 V DC (USB port) for power. It is 10 × 45 × 60 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 2m 1.25m 10m 4m
- Frequency stability
- 0.5 p.p.m.
- Tuning steps
- 1 p.p.b.
- Memories
- ?
Receiver
- RX-range
- 0.005-31 / 60-260 MHz
- Modulations
- All mode Multiple (Software defined)
- Sensitivity
- 15 MHz: 0.022 µV (MDS @ 500 Hz BW)
64-118 MHz: 0.021 µV (MDS @ 500 Hz BW)
118-260 MHz: 0.02 µV (MDS @ 500 Hz BW) - Selectivity
- ?
- Filters
- Tracking RF filters
- Receiver system
- Direct sampling SDR
- IF-frequencies
- ?
- Image rejection
- 120 dB
- Audio output
- -
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- USB
Electrical
- Power requirements
- 5 V DC (USB port)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 45 × 10 × 60 mm (1.77 × 0.39 × 2.36 in)
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2019 and 202x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Pre-selectors and Polyphase tracking filters
- Accessories
- -
- RigReference ID
- 6437
- MPN
- AIRSPY-HF+-DISCOVERY
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Airspy HF+ Discovery. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Airspy HF+ Discovery is around:
- USD 138.00
These estimates are based on the following prices:
