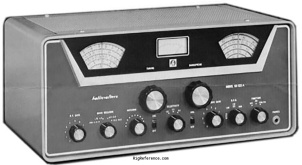

The Hallicrafters SX-122A is a desktop HF/VHF receiver. It covers 0.54-1.6 / 1.75-4.9 / 4.8-12.6 / 12.5-34 MHz. It uses a double conversion superheterodyne receiver system with IF frequencies of 1st: 1.65 MHz and 2nd: 50 kHz. Audio output is 3.2 W external only. It features ANL. Dimensions are 203 × 476 × 248 mm. Power requirements are Mains (115 / 230 V AC). Current drain is 85 W max.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.54-1.6 / 1.75-4.9 / 4.8-12.6 / 12.5-34 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- 5 kHz (-6 dB)
2.5 kHz (-6 dB)
500 Hz (-6 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 1.65 MHz
2nd: 50 kHz - Image rejection
- ?
- Audio output
- 3.2 W external only
Connections
- Antenna
- Clamps / screws
- Impedance
- 50-600Ω
- Other
- -
Electrical
- Power requirements
- Mains (115 / 230 V AC)
- Current drain RX
- 85 W max
- TX
- -
Physical
- Dimensions (w×h×d)
- 476 × 203 × 248 mm (18.74 × 7.99 × 9.76 in)
- Weight
- 13.20 kg (29.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ANL
- Accessories
- -
- RigReference ID
- 6468
- MPN
- HALLICRAFTERS-SX-000122A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-122A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hallicrafters SX-122A in Good condition is around:
- USD 360
These estimates are based on the following prices:
