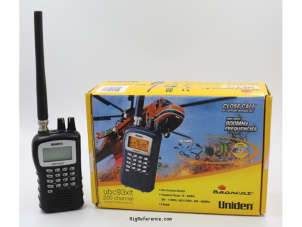

The Uniden-Bearcat UBC93XLT is a handheld scanner / receiver covering 25-88 / 108-174 / 400-512 / 806-956 MHz. It features a triple conversion superheterodyne receiver system with IF frequencies of 1st: ~380 MHz, 2nd: 21.3 MHz and 3rd: 450 kHz. Tuning steps are selectable at 5 / 6.25 / 12.5 kHz. The UBC93XLT has 10 memory banks with a total of 200 channels. It features "Close Call" RF capture and a backlit display. Audio output is 490 mW at ?% distortion / 8 ohm. Dimensions are 115 × 68 × 32 mm. It weighs 165 gr and requires 2.4-3 V DC (2×R6/AA NiMH or Alkaline batteries) or 6 V DC external power. Current drain in receive mode is 110-310 mA.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- 5 / 6.25 / 12.5 kHz
- Memories
- 200 channels in 10 bank(s) @ 50 channels/second
Receiver
- RX-range
- 25-88 / 108-174 / 400-512 / 806-956 MHz
- Modulations
- AM FM
- Sensitivity
- VHF: 0.3 µV (12 dB SINAD)
UHF: 0.4 µV (12 dB SINAD) - Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: ~380 MHz
2nd: 21.3 MHz
3rd: 450 kHz - Image rejection
- ?
- Audio output
- 490 mW at ?% distortion / 8 ohm
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 2.4-3 V DC (2×R6/AA NiMH or Alkaline batteries) or 6 V DC external
- Current drain RX
- 110-310 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 68 × 115 × 32 mm (2.68 × 4.53 × 1.26 in)
- Weight
- 165 gr (5.8 oz)
- Form factor
- Handheld
- Manufactured
- Between 2011 and 201x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- "Close Call" RF capture
Backlit display - Accessories
- -
- RigReference ID
- 6491
- MPN
- UNIDEN-BEARCAT-UBC000093XLT
