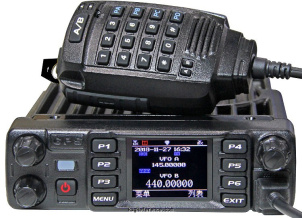

Anytone AT-D578UV III

Mobile Tri-band Transceiver

Specs Manuals (0) Reviews (0) Prices (3) Compare

The Anytone AT-D578UV III is a mobile tri-band transceiver. It covers 87.5-108 / 136-174 / 400-480 MHz for receive and 144-146 / 222-225 / 430-440 MHz (Europe) for transmit. Frequency stability is ± 2.5 p.p.m. with tuning steps of 5 / 6.25 kHz. RF output is selectable at 5 / 10 / 25 / 50 W (UHF: 45 W) and audio output is 2 W. It features 250 memory banks and 4000 memory channels. Power requirements are 13.8 V DC ±20%. Features include a 1.77" color LCD, CTCSS/PL and DCS, DTMF, 2-tone/5-tone selcall, SMS via keyboard, APRS (DMR & FM), roaming, GPS and Bluetooth, VFO, VOX, backlit buttons and Micro-USB connectivity. Twin RX capabilities are available for various band combinations.

General characteristics

HAM bands: 2m 1.25m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 5 / 6.25 kHz
Memories: 4000 channels in 250 bank(s)

Receiver

RX-range: 87.5-108 / 136-174 / 400-480 MHz
Modulations: FM N-FM W-FM DMR
Sensitivity: Analog (12 dB SINAD)
≤ 0.25 µV (Wide Band)
≤ 0.35 µV (Narrow Band)
Digital
0.3 µV / -117.4 dBm (BER 5%), 0.7uV/-110dBm (BER 1%)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 2 W

Transmitter

TX-range: 144-146 / 222-225 / 430-440 MHz (Europe)
Modulations: FM N-FM DMR
RF-output: 5 / 10 / 25 / 50 W (UHF: 45 W)

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC ±20%
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Mobile
Manufactured: Between 2019 and 202x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: 1.77" color LCD. CTCSS/PL and DCS. DTMF. 2-tone/5-tone selcall.
SMS via keyboard. APRS (DMR & FM). Roaming. GPS and Bluetooth.
VFO. VOX. Backlit buttons. Micro-USB. Twin RX (V/U, V/V, U/U).
Accessories: -
RigReference ID: 6500
MPN: ANYTONE-AT-D000578UV III

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-D578UV III. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Anytone AT-D578UV III in Good condition is around:

USD 279 ~ USD 323

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2022	USD 459.99	New / Mint	Gary Pinson
2021	USD 399.00	New / Mint	eBay
2021	USD 343.00	New / Mint	eBay
