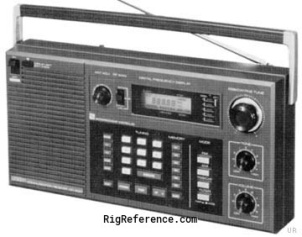

Portable communications receiver covering 150 - 29999 kHz in AM, SSB, CW and FM. Digital frequency readout, Direct keypad frequency entry & frequency up and down buttons, 12 (6?) memories, analog signal strength meter. Similar circuitry was found in the Sony ICF-2001 and this set was also sold as the RadioShack / Realistic DX-400.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- 12 channels in 2 bank(s)
Receiver
- RX-range
- 0.15-30 / 87.4-108 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.8 W
Connections
- Antenna
- Clamps / screws + Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains, 12V DC or batteries (2×AA + 6×C)
- Current drain RX
- 15 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 320 × 155 × 65 mm (12.60 × 6.10 × 2.56 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Portable
- Manufactured
- Between 1983 and 198x in Taiwan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6520
- MPN
- UNIDEN-BEARCAT-CR-002021
Manuals, diagrams and brochures
- Uniden Cr2021 User Manual PDF - 1.84 MB, submitted by KV4NK
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat CR-2021. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Uniden-Bearcat CR-2021 is around:
- CAD 1.00
These estimates are based on the following prices:
