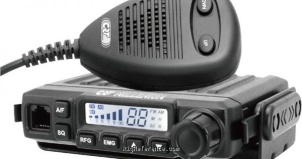

The CRT Millenium is a CB transceiver. The frequency range is 26.565-27.99125 MHz supporting AM modulation. Maximum RF-output is 4 W. The radio features 40 channels in one memory bank. Audio output is 1 W. It operates on the 11m (CB) band. Dimensions are 27 × 110 × 120 mm. Current drain during transmit is 1.8 A max. Power requirements are 13.2 V DC.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- 300 Hz
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 26.565-27.99125 MHz
- Modulations
- AM FM
- Sensitivity
- 0.25 µV @ 12 dB
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz
450 kHz - Image rejection
- 70 dB
- Audio output
- 1 W
Transmitter
- TX-range
- 26.565-27.99125 MHz
- Modulations
- AM FM
- RF-output
- 4 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.2 V DC
- Current drain RX
- ?
- TX
- 1.8 A max
Physical
- Dimensions (w×h×d)
- 110 × 27 × 120 mm (4.33 × 1.06 × 4.72 in)
- Weight
- 320 gr (11.3 oz)
- Form factor
- Mobile
- Manufactured
- Between 2017 and 20xx
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6552
- MPN
- CRT-MILLENIUM
Manuals, diagrams and brochures
- CRT Millenium User Manual PDF - 11.94 MB, submitted by Gerd
- Upload relevant documents
