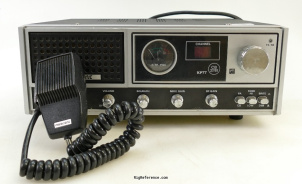

The President KP-77 is a base station transceiver. It covers 26.965-27.855 MHz in receive and 26.965-27.255 MHz in transmit with a frequency stability of ±0.005%. It features a double conversion superheterodyne receiver system with IF frequencies of 10.695 MHz / 455 kHz. The RF output is 0.5 W and the audio output is 1.5 W. It has 1 memory bank with 22 channels. Dimensions are 120 × 343 × 292 mm. It requires mains power, draws 70 mA in receive and 80 mA in transmit.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ± 0.005%
- Tuning steps
- ?
- Memories
- 22 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.855 MHz
- Modulations
- FM
- Sensitivity
- 0.5 µV
- Selectivity
- 6-7 kHz @ -6 dB / 10 kHz @ -60 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.695 MHz / 455 kHz
- Image rejection
- ?
- Audio output
- 1.5 W
Transmitter
- TX-range
- 26.965-27.255 MHz
- Modulations
- FM
- RF-output
- 0.5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 70 mA
- TX
- 80 mA
Physical
- Dimensions (w×h×d)
- 343 × 120 × 292 mm (13.50 × 4.72 × 11.50 in)
- Weight
- 4.53 kg (10.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1980 and 198x in USA
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6568
- MPN
- PRESIDENT-KP-000077
Manuals, diagrams and brochures
- President KP-77 Handleiding / Circuit diagram PDF - 18.84 MB, submitted by Gerd
