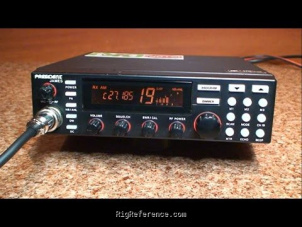

President James

Mobile CB Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find President James rigs and spare parts on eBay

The President James is a mobile transceiver. The frequency range for both reception and transmission is 26.965-27.405 MHz. RF output power is 4 W. It features an internal speaker, 1 memory bank with 40 channels and requires 12 V DC power. Dimensions are 50 × 180 × 188 mm. Current drain during transmit is 6 A max.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: ?
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.405 MHz
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 26.965-27.405 MHz
Modulations: AM FM
RF-output: 4 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12 V DC
Current drain RX: ?
TX: 6 A max

Physical

Dimensions (w×h×d): 180 × 50 × 188 mm (7.09 × 1.97 × 7.40 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 1980 and 198x

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 6572
MPN: PRESIDENT-JAMES

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: President James Maintenance Manual PDF - 2.86 MB, submitted by Gerd

: Upload relevant documents
