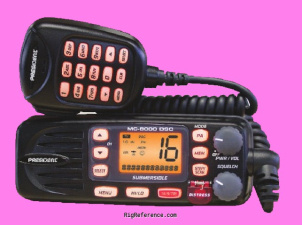

The President MC 8000 DSC is a Mobile VHF Marine Transceiver. It covers 156.300-162.025 MHz for both receive and transmit with a frequency stability of ± 10 p.p.m. and 25 kHz tuning steps. The receiver system is a double conversion superheterodyne with IF frequencies of 21.4 MHz / 455 kHz. It has an RF output of 1/25 W and an audio output of 2.8 W. The radio features 1 memory bank with 55 channels and requires 13.8 V DC power. Dimensions are 63 × 160 × 168 mm.
General characteristics
- HAM bands
- None
- Frequency stability
- ± 10 p.p.m.
- Tuning steps
- 25 kHz
- Memories
- 55 channels in 1 bank(s)
Receiver
- RX-range
- 156.300-162.025 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 21.4 MHz / 455 kHz
- Image rejection
- ?
- Audio output
- 2.8 W
Transmitter
- TX-range
- 156.300-162.025 MHz
- Modulations
- FM
- RF-output
- 1/25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 160 × 63 × 168 mm (6.30 × 2.48 × 6.61 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Marine / Navy
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6596
- MPN
- PRESIDENT-MC-008000-DSC
Manuals, diagrams and brochures
- Manual President MC-8000 DSC PDF - 709.0 kB, submitted by Gerd
