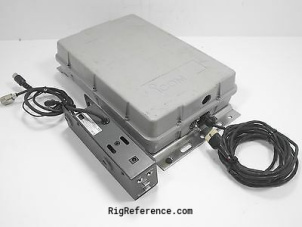

The ICOM AH-2 is an HF Antenna tuner. It covers 1.8-30 MHz for both receive and transmit. RF output is 5-15 W. Power requirements are 13.8 V DC and the current drain in receive mode is 2 A. The AH-2 weighs 3.1 kg.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 2 A
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 3.10 kg (6.8 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6607
- MPN
- ICOM-AH-000002
Manuals, diagrams and brochures
- ICOM AH-2 Brochure PDF - 1.09 MB, submitted by RigReference
- ICOM AH-2 Instruction Manual PDF - 3.73 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM AH-2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM AH-2 is around:
- JPY 1616.00
These estimates are based on the following prices:
