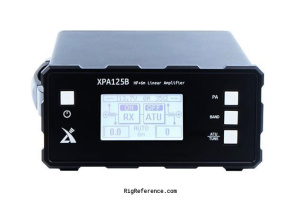

The Xiegu XPA125B is a 100 W solid-state linear amplifier. It operates on the frequency range of 10-160 meters + WARC / 6 m and requires 12-14.5 V DC power. The current drain during transmit is 30 A max. Dimensions are 150 × 260 × 100 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 6 m
- Modulations
- All mode
- RF-output
- 100 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-14.5 V DC
- Current drain RX
- ?
- TX
- 30 A max
Physical
- Dimensions (w×h×d)
- 260 × 150 × 100 mm (10.24 × 5.91 × 3.94 in)
- Weight
- 2.66 kg (5.9 lbs)
- Form factor
- Portable
- Manufactured
- Between 2022 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6621
- MPN
- XIEGU-XPA000125B
