Alinco DR-B185EMKII

Amateur Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

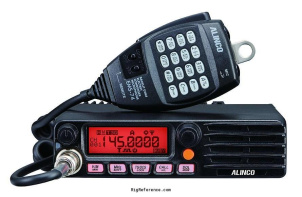

Alinco DR-B185MkII with EMS-74 microphone - Submitted by Peter

Channel spacing: 25 / 20 / 12.5 kHz
Intermodulation: ≥65 dB (wide), ≥60 dB (narrow)
Spurious rejection: ≥70 dB (wide), ≥60 dB (narrow)
Spurious emission: -36 dB
Operating temperature: -20 to +60 °C

CE amateur version. DR-B185TMKII is the FCC amateur version (TX 144-148 MHz); DR-B185MKII is the land mobile version.

General characteristics

HAM bands: 2m
Frequency stability: ±1.5 ppm
Tuning steps: 2.5 / 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 200 channels in bank(s)

Receiver

RX-range: 136-174 MHz
108-136 MHz (AM airband), 76-108 MHz (WFM broadcast)
Modulations: AM FM N-FM W-FM
Sensitivity: 12 dB SINAD: ≤0.25 µV (wide), ≤0.35 µV (narrow)
Selectivity: Adjacent channel: ≥70 dB (wide), ≥60 dB (narrow)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: >2 W (10% distortion)

Transmitter

TX-range: 144-146 MHz
Modulations: FM N-FM
RF-output: 90 / 30 / 10 / 5 W

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: 13.8 V DC ±15%
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 160 × 43 × 185 mm (6.30 × 1.69 × 7.28 in)
Weight: 1.29 kg (2.8 lbs)
Form factor: Mobile
Manufactured: Between 2026 and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: 90 W output with integrated cooling fan
Built-in GPS and APRS
Transmit noise reduction
Airband and FM broadcast receiver (20 memories)
Voice compander
2-tone, 5-tone, 50 CTCSS, 1024 DCS, tone burst, DTMF/ANI decode
Stun/kill/revive
Backlit keypad microphone EMS-74
MIL-STD-810G shock and vibration
PC programmable, 200 channels with alphanumeric names
Accessories: -
RigReference ID: 6699
MPN: ALINCO-DR-B000185EMKII

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No manuals yet for the Alinco DR-B185EMKII. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.

: Upload relevant documents

Reviews

Be the first to review the Alinco DR-B185EMKII

No reviews yet. Share your experience and earn +10 reputation.

Write the first review

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-B185EMKII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Alinco DR-B185EMKII in Good condition is around:

EUR 208

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2026	EUR 270.07	New / Mint	Peter
