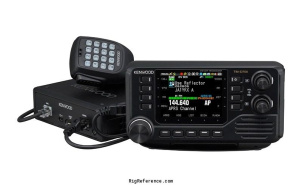

Kenwood TM-D750

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.0 ppm (-20 to +60 °C)

Tuning steps

?

Memories

1000 channels in bank(s)

Receiver

RX-range

Band A: 108-174 / 410-470 MHz
Band B: 108-524 MHz (gaps at 253.8-254.995, 262-265.995, 271-274.995, 380.2-381.32, 412-414.395 MHz)

Modulations

AM   FM   N-FM   D-STAR

Sensitivity

Amateur bands (144/430 MHz)
FM/NFM (12 dB SINAD): 0.16 / 0.20 µV
DV (GMSK 4.8 kbps, BER 1%): 0.22 µV
AM (10 dB S/N): 0.50 µV

Squelch sensitivity: 0.10 µV

Selectivity

12 kHz or more (-6 dB), 30 kHz or less (-50 dB)

Filters

?

Receiver system

Double superheterodyne (FM/DV), triple superheterodyne (AM)

IF-frequencies

1st: 57.15 MHz (band A) / 58.05 MHz (band B), 2nd: 450 kHz, 3rd (AM): 10.8 kHz

Image rejection

60 dB or more (IF rejection)

Audio output

3 W or more / 8 ohm

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM   N-FM   D-STAR

RF-output

20 / 10 / 5 W (H/M/L)

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

11.7-15.9 VDC (13.8 VDC nominal)

Current drain RX

1.3 A (rated audio output)

TX

8.0 A (H), 6.5 A (M), 5.0 A (L)

Physical

Dimensions (w×h×d)

140 × 43 × 180 mm (5.51 × 1.69 × 7.09 in) Main unit, projections not included. Operation panel: 183.3 x 93 x 36.8 mm (W x H x D)

Weight

1.31 kg (2.9 lbs) Main unit; operation panel 370 g

Form factor

Mobile

Manufactured

Between 2026 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

D-STAR and APRS (built-in KISS TNC, 1200/9600 bps, digipeater, IGate)
D-STAR direct mode via built-in wireless LAN, reflector/repeater terminal mode
Simultaneous dual reception incl. DV/DV
Built-in GPS (GPS/QZSS/Galileo/SBAS)
Wireless LAN (2.4/5 GHz) and Bluetooth 5.0
3.45" colour TFT display

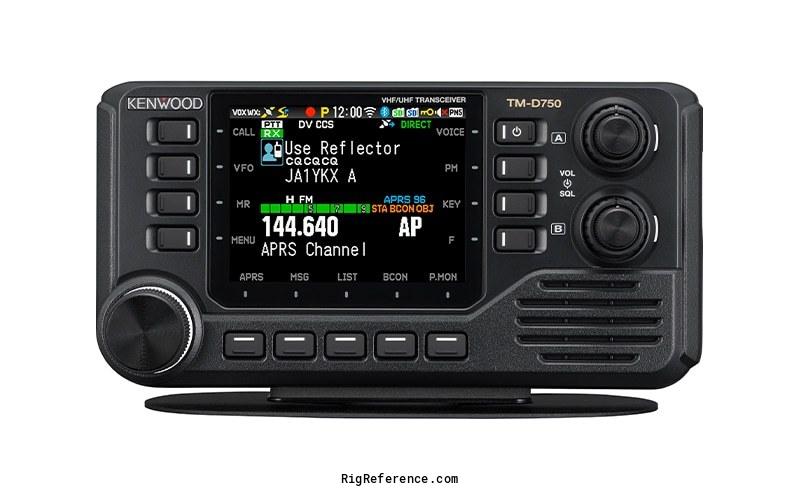

Separate operation panel with built-in 3 W speaker
USB-C and microSD on panel and main unit
Visual scan with waterfall
Voice guidance (over 900 phrases)
EchoLink node operation

Accessories

-

RigReference ID

6711

MPN

KENWOOD-TM-D000750
