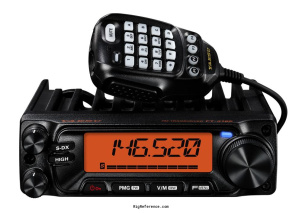

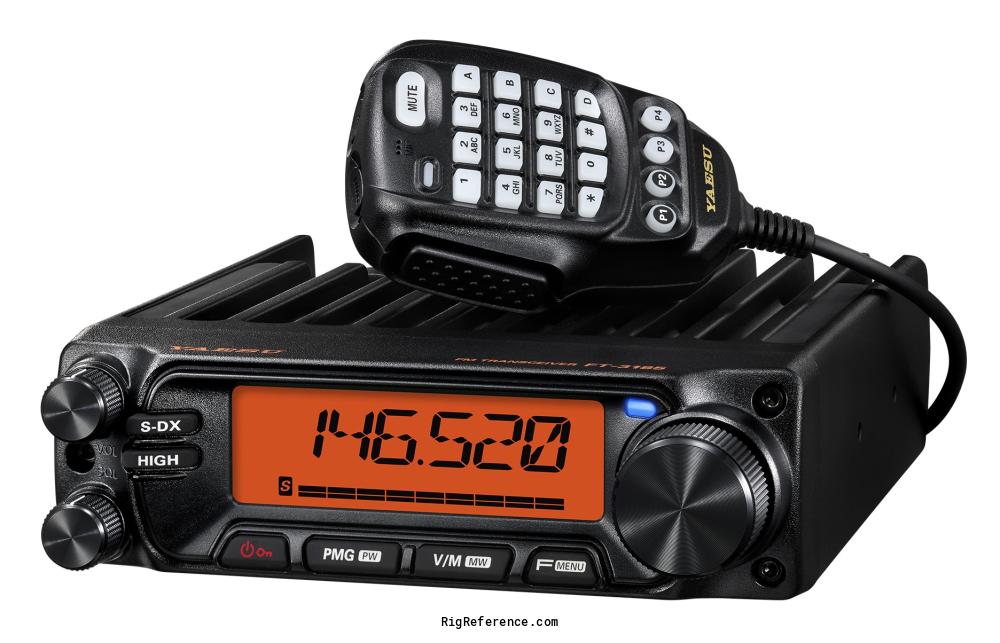

Yaesu FT-3185RASP
Amateur Mobile Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
ASP version of the Yaesu FT-3185R: the SPU-1 audio signal processing unit, optional on the FT-3185R, is built in. Pressing S-DX activates Super-DX together with ASP.
Max. deviation: ±5 kHz (wide), ±2.5 kHz (narrow)
Spurious emissions: better than -60 dB
Microphone impedance: 2 kohm
Standard repeater shift: ±600 kHz
Operating temperature: -20 to +60 °C
Replaces the Yaesu FT-2980R.
European standard version: Yaesu FT-3185E.
General characteristics
- HAM bands
- 2m
- Frequency stability
- Better than ±5 ppm (-20 to +60 °C)
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- ?
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM N-FM
- Sensitivity
- 12 dB SINAD:
136-140 MHz: better than 0.16 µV
140-150 MHz: better than 0.14 µV
150-174 MHz: better than 0.19 µV - Selectivity
- 12 kHz (-6 dB) / 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 21.7 MHz / 450 kHz
- Image rejection
- ?
- Audio output
- 3 W (8 ohm, 10% THD)
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM N-FM
- RF-output
- 85 / 50 / 20 / 5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%, negative ground
- Current drain RX
- 0.7 A (0.5 A squelched)
- TX
- 15 A (85 W), 11 A (50 W), 7 A (20 W), 3 A (5 W)
Physical
- Dimensions (w×h×d)
- 160 × 50 × 185 mm (6.30 × 1.97 × 7.28 in) Without knobs
- Weight
- 1.90 kg (4.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 85 W output, 4 power levels, fanless heatsink
Super DX receive function with built-in ASP audio digital signal processor (SPU-1 factory installed)
Primary Memory Group activity monitor (PMG, 5 channels)
Custom Function List (CFL)
Advanced Track Tuning front end
200 memory channels plus band-edge, home and PMG memories, 6-character labels
CTCSS/DCS encoder/decoder
Keyboard frequency entry from the supplied DTMF microphone
Weather alert (USA version) - Accessories
- Supplied: SSM-85D DTMF microphone, mounting bracket, standing foot, DC power cable
- RigReference ID
- 6821
- MPN
- YAESU-FT-003185RASP
