Radioddity HF-010
Amateur Portable Antenna
Add a review (+10 rep) Own this rig? Add it to your shack

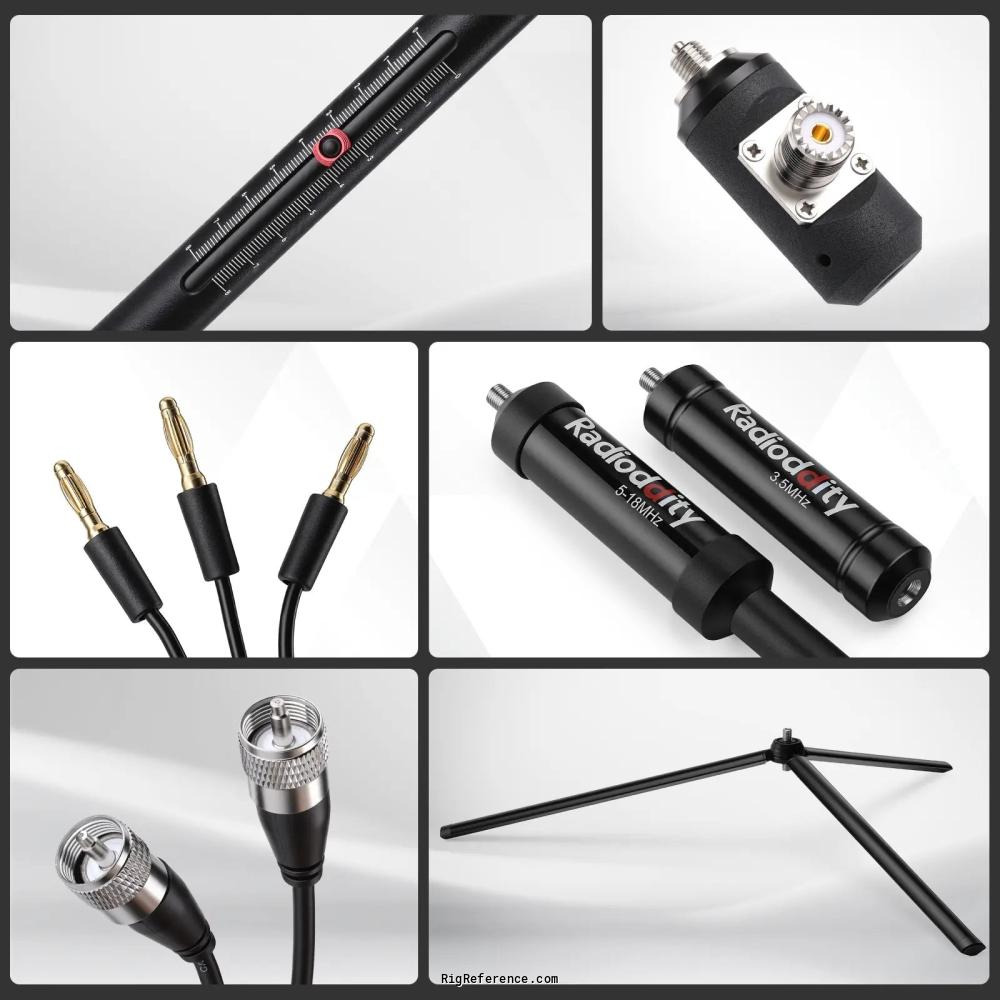

Supplied: antenna base, ground spike, 2 extension rods (45 cm), tunable and fixed loading coils, telescopic whip (max. 275 cm), 3 ground radials (4.8 m), 10 m coax, BNC-M to SO-239 adapter, tripod mount, water bag, tape measure, carrying bag.
General characteristics
- HAM bands
- 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- ?
- Modulations
- -
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 3.5-50 MHz (80 m - 6 m)
- Modulations
- -
- RF-output
- 100 W CW / 150 W PEP SSB
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 2.50 kg (5.5 lbs) Net; 3 kg with accessories
- Form factor
- Portable
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Portable HF vertical, 10 bands 80 m to 6 m
Fixed loading coil for 80 m, sliding tuning coil for 60-17 m, no coil above 18 MHz
Typical SWR ≤1.5:1
304 stainless steel threaded connectors, anti-corrosion coating, enclosed coil
Ground spike and tripod with water bag
Vehicle mounting on a magnetic base with the optional HF-010A - Accessories
- -
- RigReference ID
- 6844
- MPN
- RADIODDITY-HF-000010
