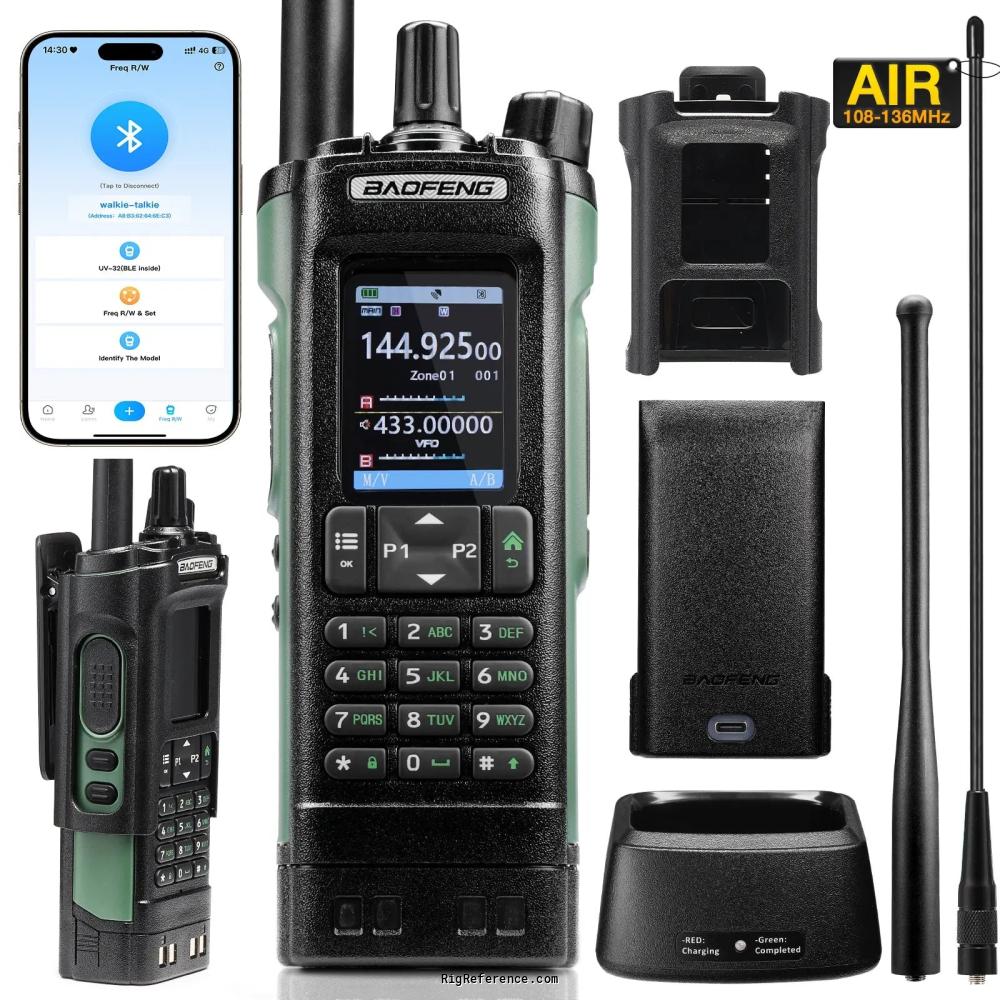

Baofeng UV-32
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Operating temperature: -10 to +60 °C
Channel spacing: 25 / 12.5 kHz
In CHIRP, select UV-21ProGPS.
General characteristics
- HAM bands
- 2m 1.25m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 1000 channels in 10 bank(s)
Receiver
- RX-range
- 136-174 / 220-260 / 350-390 / 400-520 MHz
AM airband 108-136 MHz, FM broadcast 65-108 MHz
NOAA weather
EU version: VHF & UHF, airband, FM broadcast - Modulations
- AM FM N-FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 / 220-260 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 10 W (high / medium / low selectable)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC, Li-ion battery 2500 mAh USB-C charging
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 67 × 182 × 41 mm (2.64 × 7.17 × 1.61 in)
- Weight
- 350 gr (12.4 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Tri-band transmit (VHF, 1.25 m, UHF), up to 10 W, 3 power levels
Built-in GPS with radar-style position display, share/request positions
1000 channels in 10 zones
2" colour display
Bluetooth app programming, CHIRP supported
AM airband and NOAA weather receive
One-key frequency copy
Customisable side keys, channel knob
2-pin Kenwood accessory jack
USB-C charging - Accessories
- -
- RigReference ID
- 6851
- MPN
- BAOFENG-UV-000032
Manuals, diagrams and brochures
-
No manuals yet for the Baofeng UV-32. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Baofeng UV-32
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng UV-32. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Baofeng UV-32 in Good condition is around:
- USD 40
These estimates are based on the following prices:
