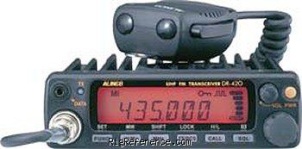

The Alinco DR-420H is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit frequencies. The DR-420H features CTCSS/DCS and a 10F3 digital voice option (EJ-47U). RF output power levels are High: 35 W, Medium: 10 W, Low: 5 W. Image rejection is 60 dB. It requires 13.8V DC power. Current drain in receive mode is 0.6 A and max 10 A in transmit mode. Dimensions are 40 × 140 × 174 mm. The DR-420H weighs 1 kg.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- High: 35 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.6 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 174 mm (5.51 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2003 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/DCS. 10F3 digital voice option (EJ-47U)
- Accessories
- -
- RigReference ID
- 2322
- MPN
- ALINCO-DR-000420H
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-420H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Alinco DR-420H is around:
- USD 168 ~ USD 311
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
