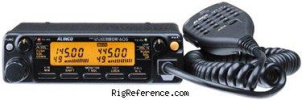

Alinco DR-605T

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
136-174 / 420-471 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-148 / 430-450 MHz
Modulations
FM
RF-Output
High: 50/35 W, Low: 5/5 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
Max 1.2 A
TX
Max 11.5 A

Physical

Manufactured
Between 19xx and 19xx
Dimensions (w×h×d)
140 × 47 × 176 mm (5.51 × 1.85 × 6.93 in)
Weight
1.10 kg (2.4 lbs)
Form factor
Mobile

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
9K6 packet ready. Twin RX
Accessories
?
MPN
ALINCO-DR-000605T

Manuals, diagrams and brochures

Alinco DR-605 Instruction manual submitted by RigReference
Alinco DR-605 Service manual submitted by RigReference

Upload relevant documents

Show other documents.
Find the Alinco DR-605T user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-605T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DR-605T is around:

  • USD 72.00
Year Historic price Condition Submitted by
2019 USD 73.00 Used / Okay John Lime III
