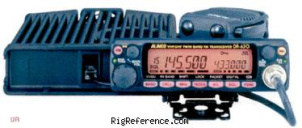

Alinco DR-620T Mobile VHF/UHF Transceiver

 (4.2/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
87.5-108 / 108-174 / 335-480 MHz
TX-range
144-148 / 430-450 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   N-FM   W-FM
Sensitivity
Main band: 0.2 µV or better (-12 dB SINAD)
Sub band: 0.25 µV or better (-12 dB SINAD)
Selectivity
FM, -6 dB: 12 kHz or more, -60 dB: 28 kHz or less
N-FM, -6 dB: 6 kHz or more, -60 dB: 14 kHz or less
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM   N-FM
RF-Output
High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
400-600 mA
TX
Max 11 A

Physical

Dimensions (w×h×d)
140 × 40 × 185 mm (5.51 × 1.57 × 7.28 in)
Weight
1,000 gr (2.2 lbs)
Form factor
Mobile
Manufactured
Between 2002 and 200x
MPN

Other features

Memories
202 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Detachable control head. Theft alarm. CTCSS & DCS. Twin RX. 1200/9600 bd packet and GPS option (EJ-50U). 10F3 digital voice board (EJ-47U) option (requires at least two similarly equipped radios)
Accessories
-

Manuals, diagrams and brochures

Alinco DR-620TE Instruction manual submitted by RigReference
Alinco DR-620 Service manual submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Full featured, but the RX IMD problem is bad for metro areas.

Alinco DR-620T, Mobile VHF/UHF Transceiver

My 1st dual band mobile rig. Full features you'd want and expect, until you went into harsh RF environments, like metro areas. Intermod on RX is terrible. The DR-635T is indeed the better RX improved version of this rig. Apparently, there is a modified fix for this. So, if you see this rig for $100.00, or less, grab it! One thing about all Alincos? Their audio is hot right out of the box. Simple adjustment internally. Look for a Phillips Headed POT marked DEV for Deviation. Just be sure that you have a deviation meter, or something else for your TX audio reference when doing this adjustment. Other-wise, nice audio quality for both TX and RX. Oh yes... For you cold climate ops, the 440MHz Squelch will drop on you while the rig is cold, but come back after it warms up. The DR-635T does that too, so it must be an Alinco thing.

Written by rreh917 on Dec 22, 2016

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2005
USD 400.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Alinco DR-620T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Alinco DR-620T might be around:

  • USD 64.00
Price Condition Year User
USD 400.00 New / Mint 2005 rreh917
