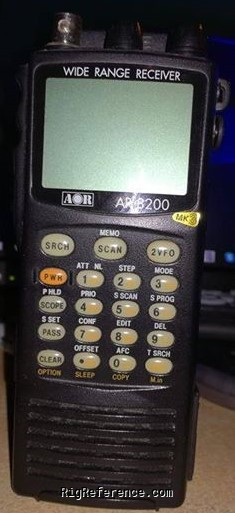

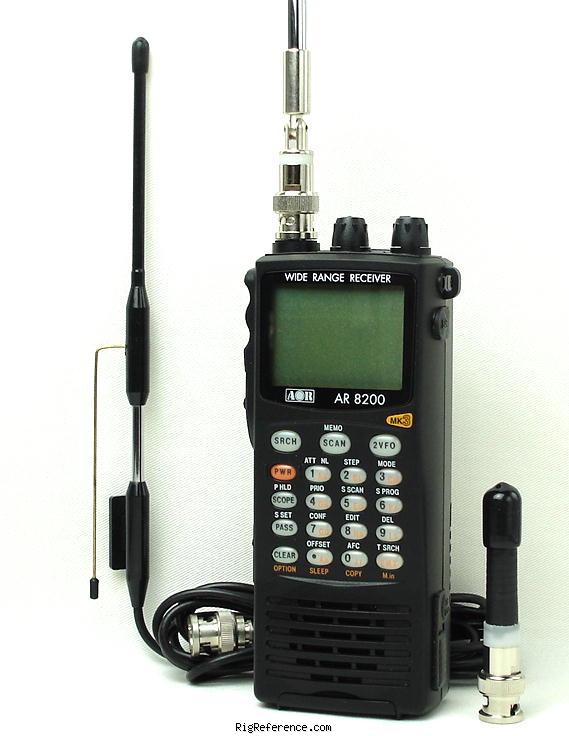

AOR AR-8200 Mk3

Handheld HF/VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.1-3000 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   N-AM   W-AM   S-FM   N-FM   W-FM   CW   SSB
Sensitivity
AM (10 dB S/N)
0.53-2 MHz: 3.5 µV
2-30 MHz: 2.5 µV
30-470 MHz: 1.5 µV
N-FM (12 dB SINAD)
30-470 MHz: 0.85 µV
470-1040 MHz: 0.9 µV
1040-2040 MHz: 9 µV
2040-3000 MHz: 25 µV
W-FM (12 dB SINAD)
30-470 MHz: 1.5 µV
Selectivity
SSB/NAM
3 kHz (-6 dB), 9 kHz (-60 dB)
AM/S-FM
9 kHz (-6 dB), 20 kHz (-40 dB)
W-AM/N-FM
12 kHz (-6 dB), 25 kHz (-40 dB)
W-FM
150 kHz (-3 dB), 360 kHz (-20 dB
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
4.8-6V DC (4R6/AA) or 12V DC external
Current drain RX
25-190 mA
TX
-

Physical

Dimensions (w×h×d)
61 × 143 × 39 mm (2.40 × 5.63 × 1.54 in)
Weight
217 gr (7.7 oz) without batteries and antenna
Form factor
Handheld
Manufactured
Between 200x and 200x
MPN
AOR-AR-008200-MK3

Other features

Memories
1000 channels in 20 bank(s)
Usage
Amateur / Ham radio operators
Features + options
TXCO. MW bar aerial. RF preselection of mid VHF bands. Band scope. Noise limiter. RS-232C. Optional slot cards include EM8200 (extra memory), CT8200 (CTCSS), RU8200 (20 sec recorder), TE8200 (tone eliminator), VI8
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the AOR AR-8200 Mk3 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-8200 Mk3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the AOR AR-8200 Mk3 is around:

  • USD 40.00 ~ USD 132.00
  • CAD 405.00
  • GBP 149.00
Year Historic price Condition Submitted by
2018 CAD 406.00 Used / Mint eBay
2010 USD 266.00 Used / Good eBay
2010 USD 495.00 Used / Good eBay
2010 USD 425.00 Used / Good eBay
2010 GBP 302.00 Used / Mint Gildermesh
2005 USD 250.00 Used / Good R1VINCE
