Bando Technic-5S Desktop Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack

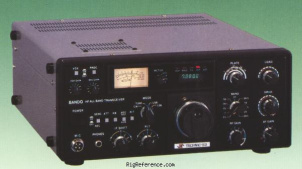

The Technic-5 is Bando's only HF all band transceiver. Released in 1987, the Technic-5 went though a design change in 1993 when the VFO design was changed from analogue to PLL. The Technic-5S has 1 6146B tube, capable of generating 50W.

Frequency range

RX-range
10-80 m
TX-range
10-80 m
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
CW   SSB
Sensitivity
0.25 µV (10 dB S/N)
Selectivity
SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
>50 dB
Audio output
-

Transmitter

Modulations
CW   SSB
RF-Output
50 W

Connections

Antenna
SO-239
Impedance
50/75 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
335 × 138 × 350 mm (13.19 × 5.43 × 13.78 in)
Weight
13.50 kg (29.8 lbs)
Form factor
Base Station
Manufactured
Between 1987 and 199x in Korea
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Digital frequency readout
IF-shift
Noise blanker
RIT
Speech processor
VOX
Accessories
-
