Bando Technic-7 Mobile Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack

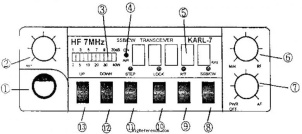

The Bando Technic 7 is a mobile 40 meter single band transceiver. Maximum RF output is 60 W in both CW and LSB. USB is not supported as it is hardly used on 40 meter. Tuning is done using UP/DOWN buttons with a 100Hz step size. Front controls include both and RF and AF gain dial and a 5-digit LED display.

Frequency range

RX-range
40 m (7.000-7.100 MHz)
TX-range
40 m (7.000-7.100 MHz)
HAM bands
40m
Stability
-
Tuning steps
0.1 / 1 kHz
Filters
-

Receiver

Modulations
CW   LSB
Sensitivity
0.25 µV (10 dB S/N)
Selectivity
SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
>50 dB
Audio output
2 W into 8 ohm

Transmitter

Modulations
CW   LSB
RF-Output
60 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
12-14V DC
Current drain RX
30 mA
TX
7 A max

Physical

Dimensions (w×h×d)
150 × 55 × 260 mm (5.91 × 2.17 × 10.24 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Mobile
Manufactured
Between 199x and 19xx in Korea
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Bando Technic 7 Block Diagram submitted by RigReference
