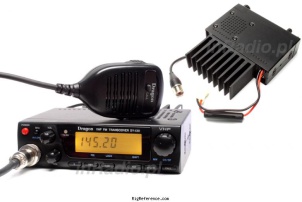

Dragon SY-130E

Mobile VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The Dragon SY-130 has slightly different frequency ranges depending on the version:

Dragon SY-130F
RX: 136-174 MHz
TX: 136-174 MHz

Dragon SY-130EZ
RX: 136-174 MHz
TX: 144-146 MHz

Dragon SY-130E
RX: 144-146 MHz
TX: 144-144 MHz

Dragon SY-130T
RX: 136-174 MHz
TX: 144-148 MHz

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 kHz

Receiver

RX-range
136-174 MHz
Modulations
FM
Sensitivity
(136.000~174.000 MHz) 12dB SINAD - 16 dBµV
Selectivity
> 6 kHz @ -6 dB
> 15 kHz @ -60 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 21.4 MHz
2nd: 455 kHz
Image rejection
?
Audio output
2.5 W @ 10% THD into 8 ohm

Transmitter

TX-range
144-146 MHz
Modulations
FM
RF-Output
High: 50 W, Low: 10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
0.8 A
TX
10 A max

Physical

Manufactured
Between 20xx and 20xx
Dimensions (w×h×d)
140 × 40 × 154 mm (5.51 × 1.57 × 6.06 in)
Weight
1.40 kg (3.1 lbs)
Form factor
Mobile

Other features

Memories
30 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
DRAGON-SY-000130E
