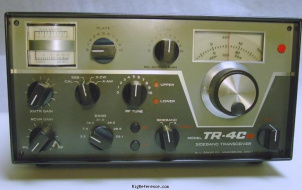

Drake TR-4CW HF Transceiver

 (4.0/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
80-10 m
TX-range
80-10 m
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   CW   SSB
RF-Output
150 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
273 × 140 × 365 mm (10.75 × 5.51 × 14.37 in)
Weight
7.30 kg (16.1 lbs)
Form factor
Unknown
Manufactured
Between 1978 and 19xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Still going strong

Drake TR-4CW, HF Transceiver

Qrt since 1973, back about a year ago. The first thing I did was looking for a Drake line. Today I'm the proud owner of a TR4CW and an R4C to acc. the transceiver. Both needed some attention, but who doesen't need a bit of "trimming" when over 40 year's old.

But they are still working, transceiver sounding very nice especially on CW. Who reading this, think someone will be using my Yeasu FT-450, eventhough it's a really nice rig, when being more than 40 year's old?

73 de Johan / SA3BYC back on HF after 39 years Qrt

Written by sa3byc on Dec 16, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Fair condition in 2012
EUR 300.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Drake TR-4CW. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Drake TR-4CW might be around:

  • EUR 215.00
  • USD 269.00
Price Condition Year User
USD 541.99 Used / Good 2010 eBay
EUR 300.00 Used / Fair 2012 sa3byc
