This model was also sold as the Tecsun HAM-2000.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
0.1-30 / 87-108 / 118-137 MHz
Modulations
AM   AM-sync   W-FM Stereo   SSB
Sensitivity
AM 0.1-30 MHz: 2 µV (10 dB S+N/N)
AM 118-137 MHz: 4 µV (1000 Hz, 30% mod)
W-FM: 4 µV (20 dB S/N, mono)
SSB: 0.5 µV (10 dB S+N/N)
Selectivity
AM/SSB (BW=6 kHz)
>6 kHz (-6 dB), <12 kHz (-60 dB)
AM/SSB (BW=4 kHz)
>4 kHz (-6 dB), <9 kHz (-60 dB)
AM/SSB (BW=2.3 kHz)
>2.3 kHz (-6 dB), <5 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
>60 dB (0.1-30 / 118-137 MHz)>50 dB (87-108 MHz)
Audio output
?

Connections

Antenna
F-type + Built-in sweep
Impedance
50Ω
Other
-

Electrical

Power requirements
9V DC (6R20/D) or mains
Current drain RX
510-830 mA
TX
-

Physical

Manufactured
Between 2000 and 2004 in China
Dimensions (w×h×d)
54 × 24 × 22 mm (2.13 × 0.94 × 0.87 in)
Weight
6.60 kg (14.6 lbs)
Form factor
Mobile

Other features

Memories
70 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
ANL. Dual clock.
Accessories
?
MPN
GRUNDIG-SATELLIT-000800

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Caution Required

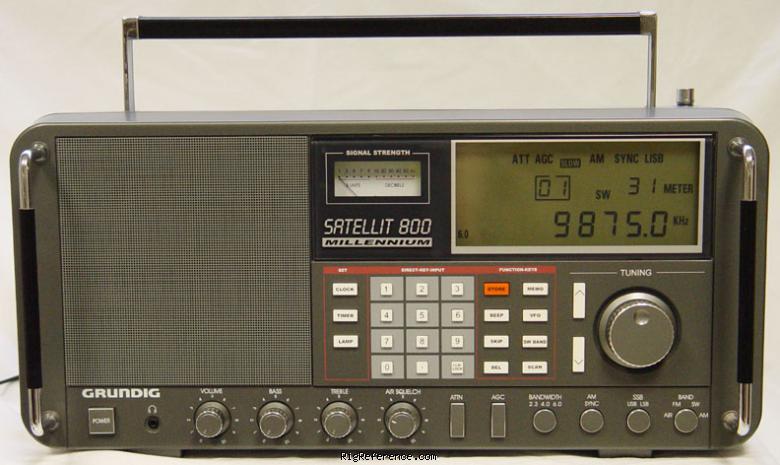

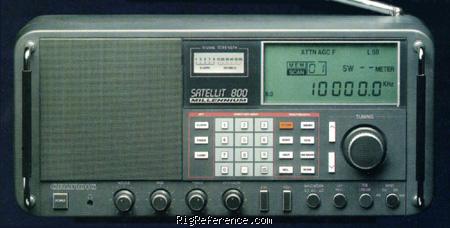

Grundig Satellit 800, Mobile HF/VHF Receiver

This receiver needs to be purchased with caution as quality control leaves a lot to be desired, the year of manufacture has proven to be no guarantee of reliability or build quality.
Universal Radio sell these radios and carefully inspect them for proper performance prior to sale, so buying from a firm with an identical sales strategy would be a wise decision.
Happily, mine works perfectly, the RX audio is easy to listen to despite the fact that the internal speaker in not of the highest quality.
However, when fed through my high quality PC sound system it sounds fantastic.
I usually run the audio through my Datong FL3 where the auto and manual notch prove very useful as does the variable SSB filtering.
The telescopic whip picks up quite a bit of hash from the LCD screen, most noticeable on 160m, an external HF antenna gives vastly superior performance as does a dedicated FM broadcast band antenna. A good quality digital filtered speaker cleans up the FM audio.
Overall, I like the 800 quite a lot, it's no match for a TOR receiver but it has a charm all its own like an old vintage radio.
Find a good one and it will wear the owner out.

Written by GI0ZGB on Jan 11, 2010

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in
GBP 200.00
