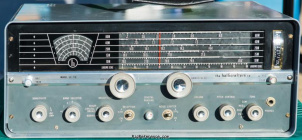

The Hallicrafters SX-110 general coverage receiver tunes from 535 to 34000 kHz in four bands. The main ranges: .538-1.6, 1.55-4.6, 4.6-13 and 12-34 MHz. Bandspread: 3.5-4, 7-7.3, 14-14.4, 20.1-21.5 and 26-30 MHz.
The circuit consists of: 6SG7 RF Amp, 6SA7 Converter, 6SG7 1st IF Amp, 6SK7 2nd IF Amp, 6SC7 Audio Amp/BFO, 6K6GT Audio Output, 6H6 Detector/ANL/AVC and 5Y3GT Rectifier.
General characteristics
- HAM bands
- 80m 40m 20m 15m 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.538-34 MHz
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- External speaker required
Connections
- Antenna
- Clamps / screws
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains (105-117 V AC)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 476 × 216 × 259 mm (18.74 × 8.50 × 10.20 in)
- Weight
- 13.00 kg (28.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1960 and 1963 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Headphone Jack
S-Meter
AVC ON/OFF
Tone LO/MED/HI
RF Gain
ANL
Mute Line
Antenna Trimmer
BFO
Standby
Dial Lamp
Speaker Terminals - Accessories
- -
- RigReference ID
- 2808
- MPN
- HALLICRAFTERS-SX-000110
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-110. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hallicrafters SX-110 in Good condition is around:
- USD 95 ~ USD 154
These estimates are based on the following prices:
