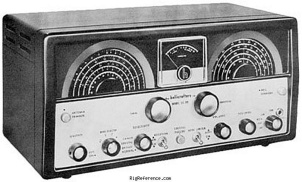

Hallicrafters SX-99

Desktop HF/VHF Receiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find Hallicrafters SX-99 rigs and spare parts on eBay Find the Hallicrafters SX-99 on Amazon
We receive a small fee when you buy through these links, thank you!

The Hallicrafters SX-99 is similar in design to the Hallicrafters S-85. It has a crystal filter, like the Hallicrafters SX-85 and an extra S-meter.

Frequency range

RX-range
0.538-34 MHz in four bands
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
Crystal

Receiver

Modulations
AM   CW
Sensitivity
?
Selectivity
?
Receiver system
8 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
52/600 Ω

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
476 × 229 × 273 mm (18.74 × 9.02 × 10.75 in)
Weight
13.00 kg (28.7 lbs)
Form factor
Base Station
Manufactured
Between 1955 and 1958
MPN
HALLICRAFTERS-SX-000099

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Hallicrafters SX-99 user manuals on eBay #ad

Reviews & stories

SX-99 Basic Receiver

Hallicrafters SX-99, Desktop HF/VHF Receiver

My SX-99 was a true basket case from the barn for unknown years, it arrived with no S-Meter, a triple triode (6D10) installed in place of the RF Amplifier/Local Oscillator, missing knobs and a broken Crystal Switch.

Complete cleaning of the chassis as it was covered in a tar like substance, replacing all paper capacitors, removing the 6D10 and returning the circuit to the original design, a fellow Ham donating an S-Meter and Crystal Switch from a donor radio, plus finding original knobs at Hamfest, repainting the cabinet and replacing the glass in front of the two dials, returned the radio to near new looking condition.

It does receive on all four (4) bands after alignment with Band-4 being the weakest.

At best it is a very basic receiver, designed for AM reception but will copy SSB with the BFO turned on an patient tuning.

Written by CRY42 on Jan 29, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Poor condition in 2011
USD 1.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Hallicrafters SX-99. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Hallicrafters SX-99 is around:

  • USD 0.00
Year Historic price Condition Submitted by
2011 USD 1.00 Used / Poor CRY42
2010 USD 42.99 Used / Okay eBay
2010 USD 125.00 Used / Good eBay
