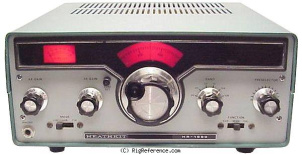

Heathkit HR-1680

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m

Modulations

CW   USB   LSB

Sensitivity

0.5 µV (10 dB S+N/N)

Selectivity

2.1 kHz (-6 dB), 7 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 8.395-8.895 MHz
2nd: 3.395 MHz

Image rejection

50 dB

Audio output

?

Connections

Antenna

RCA (Tulip)

Impedance

50Ω

Other

-

Electrical

Power requirements

11.5-15V DC or mains

Current drain RX

Max 750 mA

TX

-

Physical

Dimensions (w×h×d)

324 × 171 × 304 mm (12.76 × 6.73 × 11.97 in)

Weight

6.30 kg (13.9 lbs)

Form factor

Base Station

Manufactured

Between 1977 and 1981 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2917

MPN

HEATHKIT-HR-001680

Manuals, diagrams and brochures

Heathkit HR-1680 Foldouts PDF - 1.20 MB, submitted by David Ratcliffe

Heathkit HR-1680 Full Manual PDF - 4.47 MB, submitted by David Ratcliffe



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HR-1680. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit HR-1680 is around:

• USD 4.00 ~ USD 62.00

Price History Chart

These estimates are based on the following prices:
