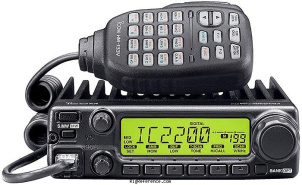

ICOM IC-2200H Mobile VHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

The Icom IC-2200H 2 meter FM mobile features a rugged design and an easy-to-read alphanumeric display. The large informative LCD may be set to green or amber. The receiver covers 118-174 MHz and the transmitter delivers 65, 25, 10 or 5 watts of output. The improved receive IMD helps provide protection from excessively strong signals such as pager signals. And the squelch attenuator (approx 10 dB) allows you to reduce interference from strong nearby signals. A winning combination for receive performance. The front panel has an oversized tuning dial is easy to grab while on the move and the large 4-level backlit display clearly provides key information at a glance. Memory channels can be assigned names for easy recognition and easy access. The 2200H supports three different scan modes: Full Scan, Memory Scan, Programmed Scan and four scan resume conditions.

Other features include: 207 memories, alphanumeric notes, 3-way priority watch and independently programmable Rx/Tx and tone squelch. The 2200H is also one of the first mobiles to be GPS NMEA compatible (GPS not supplied). There is an external speaker jack on the rear panel. The IC-2200H is built rugged and has a convenient front mounted mic jack. The supplied HM-133V remote control mic controls everything in the palm of your hand. ICOM's exclusive Hot Keys lets you program the features that you use the most. The bigger backlit keys allow you to operate in low light conditions.

Frequency range

RX-range
118-174 MHz
TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
HAM bands
-
Stability
± 10 ppm
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Filters
-

Receiver

Modulations
AM   FM   N-FM   DV
Sensitivity
0.133 µV (12 dB SINAD)
Selectivity
FM: >6 kHz (-6 dB), <14 kHz (-60 dB)
FMN: >3 kHz (-6 dB), <9 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 21.7 MHz
2nd: 450 kHz
Image rejection
> 60 dB (75 dB typical)
Audio output
2.4 W at 10% distortion with an 8 load

Transmitter

Modulations
FM   N-FM   DV
RF-Output
High: 65 W, Mid1: 25 W, Mid2: 10 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
0.8-1 A
TX
15 A max

Physical

Dimensions (w×h×d)
140 × 40 × 146 mm (5.51 × 1.57 × 5.75 in) (projections not included)
Weight
1.25 kg (2.8 lbs)
Form factor
Mobile
Manufactured
Between 2004 and 200x in Japan
MPN
ICOM-IC-002200H

Other features

Memories
207 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Digital voice/data (D-STAR) option (UT-118 (formerly UT-115)). Please note that this requires at least two similarly equiped radios. Weather channel with alert (US version only) CTCSS, DTCS and DTMF. Multi-color LCD.
Accessories
-

Manuals, diagrams and brochures

ICOM IC-2200H Instruction Manual.pdf submitted by RigReference
ICOM IC-2200H Instruction Manual (addendum-12-04).pdf submitted by RigReference

Upload relevant documents

Show other documents.

Reviews & stories

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-2200H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-2200H might be around:

  • EUR 163.00
  • USD 143.00
Price Condition Year User
USD 289.95 New / Good 2010 universal-radio
EUR 198.00 New / Good 2010 thiecom.de
EUR 199.00 New / Mint 2013 thiecom.de
