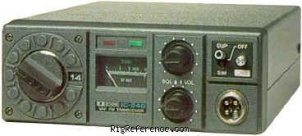

ICOM IC-240 Mobile VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



PLL: TC5080P

Frequency range

RX-range
144-146 MHz
TX-range
144-146 MHz
HAM bands
-
Stability
-
Tuning steps
25 kHz (12.5 kHz mod exists) kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 10 W, Low: 1 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
156 × 58 × 218 mm (6.14 × 2.28 × 8.58 in)
Weight
-
Form factor
Mobile
Manufactured
Between 1977 and 19xx in Japan

Other features

Memories
22 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
22 diode programmable channels, 25 kHz spacing.
Accessories
-
