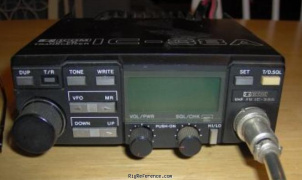

ICOM IC-38A Mobile VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
220-225 MHz
TX-range
220-225 MHz
HAM bands
1.25m
Stability
±10 p.p.m. (-10°C to +60°C)
Tuning steps
5 / 10 / 15 / 20 / 25 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
0.18 µV for 12 dB SINAD
Selectivity
More than 15 kHz (-6 dB), less than 30 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 17.2 MHz
2nd: 455 kHz
Image rejection
60 dB
Audio output
2.4 W (8 ohms at 10% distortion)

Transmitter

Modulations
FM
RF-Output
High: 25 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8 V DC ±15%
Current drain RX
450-800 mA
TX
3-6.5 A

Physical

Dimensions (w×h×d)
140 × 50 × 171 mm (5.51 × 1.97 × 6.73 in)
Weight
1.18 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 198x and 198x in Japan
MPN

Other features

Memories
21 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
