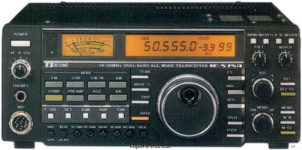

ICOM IC-575A Desktop HF/VHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
26-56 MHz
TX-range
28-29.7 / 50-54 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
AM: <1 µV (10 dB S/N)
FM: <0.25 µV (12 dB SINAD)
SSB/CW: <0.13 µV (10 dB S/N)
Selectivity
AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
AM: 1-4 W, FM/SSB/CW: 1-10 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC or mains
Current drain RX
1.4-1.6 A
TX
Max 5.2 A

Physical

Dimensions (w×h×d)
241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
Weight
6.10 kg (13.5 lbs)
Form factor
Base Station
Manufactured
Between 1988 and 199x in Japan
MPN
ICOM-IC-000575A

Other features

Memories
99 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Reviews & stories

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-575A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-575A might be around:

  • USD 99.00
Price Condition Year User
USD 100.00 Used / Okay 2019 Jim M.
