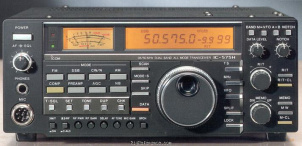

ICOM IC-575H

Desktop HF/VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-575H rigs and spare parts on eBay Find the ICOM IC-575H on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
26-56 MHz
TX-range
28-29.7/50-54 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
AM: <1 µV (10 dB S/N)
FM: <0.25 µV (12 dB SINAD)
SSB/CW: <0.13 µV (10 dB S/N)
Selectivity
AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
AM: 5-25 W, FM/SSB/CW: 10-100 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC or mains
Current drain RX
1.4-1.6 A
TX
Max 20 A

Physical

Dimensions (w×h×d)
241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
Weight
6.10 kg (13.5 lbs)
Form factor
Base Station
Manufactured
Between 1988 and 199x in Japan
MPN
ICOM-IC-000575H

Other features

Memories
99 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures
