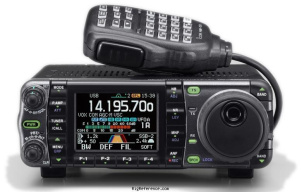

ICOM IC-7000 Mobile HF/VHF/UHF Transceiver

 (4.5/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

The ICOM IC-7000 represents the next generation in all-mode HF/VHF/UHF mobile transceivers. DSP at the IF level is the cornerstone of this impressive new multi-bander. In fact, the 7000 employs two DSP chips to work its magic. Imagine having 41 bandwidths available - standard! You can even select sharp or soft filter shape. And variable twin PBT allows you to either narrow the IF passband, or shift the entire passband to eliminate QRM. All the controls are intuitive to use.

Yes, there is tremendous power under the hood, but the radio is also down-right gorgeous. The 2.5 inch (diagonal) TFT color display presents numbers and indicators in bright, concentrated colors for easy recognition. You can choose from three background colors and two font styles. Not only does this display provide radio status, but it also supports a two-mode band scope. In the Center Mode the scope is centered on the receiving frequency. In the Fixed Mode the scope sweeps a fixed range.

Eight of the most-used radio functions are controlled by dedicated function keys grouped around the display for easy visibility. One quick touch turns the function on and off. A longer touch activates adjustment of the function's setting. An internal memory keyer provides four memories for station information or contest exchanges. The keyer also performs automatic repeat, automatic contest serial numbers and cut-numbers. The Digital Voice Recorder (DVR) function has a front panel REC control that allows you to record incoming signals for up to 25 minutes.

Other features include:
a detachable control head (requires optional separation cable), 503 memories, S/PWR/SWR meter, RIT, Preamp, RTTY Demodulator, Attenuator, adjustable SSB bandwidth, NTSC video output, DTMF memory, VOX, full break-in and adjustable CW pitch.

Frequency range

RX-range
0.03-200 / 400-470 MHz
TX-range
10-160 m + WARC / 6 m / 2 m / 70 cm
HAM bands
-
Stability
Less than ± 0.5ppm(0 °C (+50°C)
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   W-FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
AM (10 dB S/N)
0.5-1.8 MHz: 4 µV
1.8-29.9 MHz: 2 µV
50-54 MHz: 1 µV
144/440 MHz: 1 µV
FM (12 dB SINAD)
1.8-29.9 MHz: 0.5 µV
50-54 MHz: 0.25 µV
144/440 MHz: 0.18 µV
SSB/CW (10 dB S/N)
1.8-29.9 MHz: 0.15 µV
50-54 MHz: 0.12 µV
144/440 MHz: 0.11 µV
Selectivity
AM (BW=6 kHz)
>6 kHz (-6 dB), <15 kHz (-60 dB)
FM (BW=15 kHz)
>12 kHz (-6 dB), <20 kHz (-60 dB)
SSB (BW=2.4 kHz)
>2.4 kHz (-6 dB), <3.9 kHz (-60 dB)
**CW (BW=500 Hz)
Receiver system
-
IF-frequencies
-
Image rejection
HF: >70 dB 50/144/440 MHz: >65 dB
Audio output
-

Transmitter

Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-Output
FM/SSB/CW/RTTY: 2-100 / 2-100 / 2-50 / 2-35 W, AM: 1-40 / 1-40 / 2-20 / 2-14 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
1.3-1.6 A
TX
22 A max

Physical

Dimensions (w×h×d)
167 × 58 × 180 mm (6.57 × 2.28 × 7.09 in)
Weight
2.30 kg (5.1 lbs)
Form factor
Mobile
Manufactured
Between 2005 and 200x
MPN

Other features

Memories
503 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
2" (5 cm) TFT display
Audio equalizer
Built-in voice synthesizer
CI-V
CTCSS/DTCS
Detachable control head
IF-DSP
VHF channels NTSC-M and PAL-B TV receiver on some versions
Voice recorder
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Icom IC 7000

ICOM IC-7000, Mobile HF/VHF/UHF Transceiver

Very nice RTX !!!

Written by [deactivated user] on Apr 23, 2014

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2014

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-7000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-7000 might be around:

  • GBP 699.00
  • EUR 960.00
  • USD 595.00
Price Condition Year User
EUR 1149.00 New / Good 2010 thiecom.de
USD 1200.00 New / Mint 2010 N9SJA
GBP 700.00 Used / Good 2012 John G8CCD
EUR 1169.00 New / Mint 2013 thiecom.de
GBP 700.00 Used / Good 2019 John
