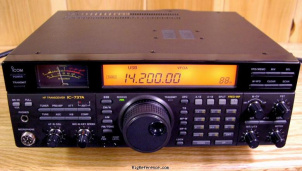

ICOM IC-737A

Desktop Shortwave Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-737A rigs and spare parts on eBay Find the ICOM IC-737A on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
0.03-30 MHz
TX-range
10-160 m + WARC
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
10-100 W (AM 4-40 W)

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
Max 20 A

Physical

Dimensions (w×h×d)
330 × 111 × 285 mm (12.99 × 4.37 × 11.22 in)
Weight
8.00 kg (17.7 lbs)
Form factor
Base Station
Manufactured
Between 199x and 199x
MPN
ICOM-IC-000737A

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
Built-in keyer
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-737A user manuals on eBay #ad

Reviews & stories

Excellent transceiver

ICOM IC-737A, Desktop Shortwave Transceiver

Very easy to read frequency with wide LCD screen ! Just like an IC775.Easy also to transmit and receive with your 737A,no menu,just the necessary !! A goog TRX,complete with elec keyer,AGC,NB,COMP,VOX,RIT;10Hz resolution,LCD Display,Automatic Antenna Tuner,
Automatic antennas switch and perhaps missing by Icom,Monitoring,no ALC and SWR Control !!
No optionnal SSB Filters !!
I think that it is an excellent station with some gaps which the contructor could have avoided!!

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Okay condition in 2010
EUR 450.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-737A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-737A is around:

  • EUR 223.00
Year Historic price Condition Submitted by
2010 EUR 450.00 Used / Okay patrick.dalmasso
