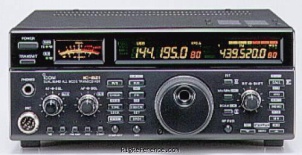

ICOM IC-821H Desktop VHF/UHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

The Icom IC-821H 2m/70cm (440MHz) all-mode transceiver was designed from the start for superior satellite and digital communications. Output power is continuously adjustable. Output on VHF 144-148 MHz is 6-35W SSB, 6-45W FM/CW. Output on UHF 430-450 MHz is 6-30W SSB, 6-40W FM/CW. Sub Band Receive and Sub Band Transmit are both featured. It is 9600 baud compatible right out of the box. A built-in electronic keyer is also supplied. In the satellite mode, the Sub band is set to transmitter (uplink) frequency and the Main band is set to the receiver (downlink) frequency. In this way, the analog S-meter, IF shift, noise blanker and RIT functions can be used for receiving. This is convenient for fine tuning the transceiver's operation to your needs. The 821H is PACSAT compatible.

Frequency range

RX-range
144-146/430-440 MHz
TX-range
144-146/430-440 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM   CW   SSB
RF-Output
Max 45/40 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 2.5 A
TX
Max 16 A

Physical

Dimensions (w×h×d)
241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
Weight
5.00 kg (11.0 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx
MPN
ICOM-IC-000821H

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
