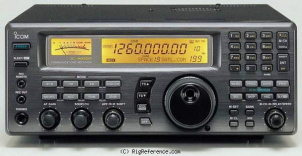

ICOM IC-R8500 Desktop HF/VHF/UHF Scanner / receiver

 (4.2/5)  Add a story   View all stories (1)   Add to my shack



Frequency range

RX-range
0.1-2000 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   N-AM   W-AM   FM   N-FM   W-FM   CW   SSB
Sensitivity
AM (10 dB S/N)
0.1-0.5 MHz: 6.3 µV
0.5-1.8 MHz: 13 µV
1.8-2 MHz: 3.2 µV
2-1000 MHz: 2.5 µV
1240-1300 MHz: 2.5 µV
AM-N (10 dB S/N)
1.8-2 MHz: 2.5 µV
2-1000 MHz: 2 µV
1240-1300 MHz: 2 µV
AM-W (10 dB S/N)
30-1000 MHz: 3.2 µV
1240-1300 MHz: 3.2 µV
FM (12 dB SINAD)
28-1000 MHz: 0.5 µV
1240-1300 MHz: 0.5 µV
W-FM (12 dB SINAD)
30-1000 MHz: 1.4 µV
1240-1300 MHz: 2 µV
SSB/CW (10 dB S/N)
0.1-0.5 MHz: 1 µV
0.5-1.8 MHz: 2 µV
1.8-2 MHz: 0.25 µV
2-30 MHz: 0.2 µV
30-1000 MHz: 0.32 µV
1240-1300 MHz: 0.32 µV
Selectivity
AM/FM-N: 5.5 kHz (-6 dB)
AM-N/SSB/CW: 2.2 kHz (-6 dB)
AM-W/FM: 12 kHz (-6 dB)
W-FM: 150 kHz (-6 dB)
CW narrow: 500 Hz (-6 dB, with optional FL-52A)
Receiver system
-
IF-frequencies
-
Image rejection
HF: Better than 60 dB VHF/UHF: 50 dB
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
N-type
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 2 A
TX
-

Physical

Dimensions (w×h×d)
287 × 112 × 309 mm (11.30 × 4.41 × 12.17 in)
Weight
7.00 kg (15.4 lbs)
Form factor
Base Station
Manufactured
Between 1996 and 2004 in Japan
MPN

Other features

Memories
1000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
IF-shift. RS-232C. CI-V Voice synthesizer option (UT-102)
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other ICOM documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-R8500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-R8500 might be around:

  • EUR 42.00
Price Condition Year User
EUR 900.00 Mint / New 1998 dberron

To submit a price, please login or register an account.

Stories & reviews

It does everything

ICOM IC-R8500, Desktop HF/VHF/UHF Scanner / receiver

From 0.1 to 2000 Mhz in every mode. Excellent audio quality and sensitivity. Icom reliability and quality

Written by dberron on Mar 29, 2014

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 1998
EUR 900.00
