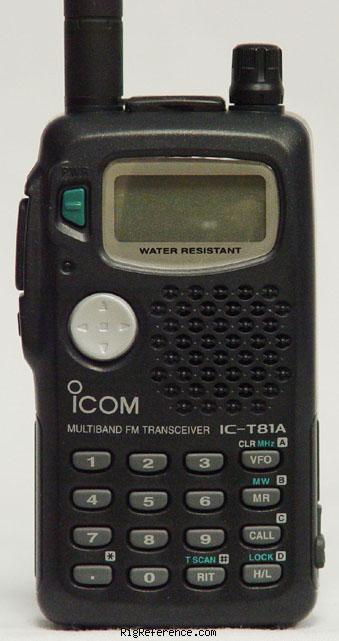

ICOM IC-T81E

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-T81E rigs and spare parts on eBay Find the ICOM IC-T81E on Amazon
We receive a small fee when you buy through these links, thank you!

The ICOM IC-T81E offers four band coverage that fits in the palm of your hand.

Frequency range

RX-range
50-999 / 1240-1300 MHz
TX-range
50-54 / 144-146 / 430-440 / 1240-1300 MHz
6m / 2m / 70cm / 23cm
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   W-FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 2/5/5/1 W, Low: 0.5/0.5/0.5/0.1 W

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
?V DC
Current drain RX
Max 220 mA
TX
Max 1.4 A

Physical

Dimensions (w×h×d)
58 × 106 × 29 mm (2.28 × 4.17 × 1.14 in)
Weight
270 gr (9.5 oz)
Form factor
Handheld
Manufactured
Between 1999 and 2001
MPN
ICOM-IC-T000081E

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-T81E user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-T81E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-T81E is around:

  • USD 115.00
Year Historic price Condition Submitted by
2011 USD 190.00 Used / Good VR2XXZ
