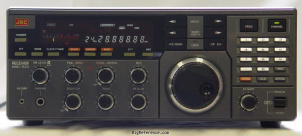

The Japan Radio Company NRD-525 follows in the proud tradition of the NRD-505 and NRD-515. This multimode receiver tunes from 90 kHz to 34 MHz with a 10 Hz digital display. Four independent filter positions are available with a 4 kHz and 2 kHz filter standard. Select stations via manual tuning, up-down tuning, scanning, keypad entry or 200 channel memories. Advanced refinements include: Passband Tuning, Notch Filter, Scan/Sweep, Clock Timer, effective Noise Blanker, Dimmer and Tone Control. The rear panel has a selectable antenna input and timer relay contacts. The '525' employs modular construction as found on many JRC marine receivers such as the NRD-301.

General characteristics

HAM bands
6m
Frequency stability
±3 ppm
Tuning steps
?
Memories
200 channels in 1 bank(s)

Receiver

RX-range
0.09-34 MHz (114-174 / 423-456 MHz option)
Modulations
All mode
Sensitivity
0.5 µV 1.6-34 MHz SSB/CW S+N/N=10dB
Selectivity
AUX (12 kHz with no filter)
WIDE > 4 kHz
INTER > 2 kHz
NARR (option)
[FM] > 12 kHz
Filters
2 / 4 kHz
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 70.45399-70.453 MHz
2nd: 455 kHz
Image rejection
> 70 dB (1.6 - 30 MHz)
Audio output
0.5 W @ 4 Ohms

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50 / 600Ω
Other
-

Electrical

Power requirements
13.8V DC or mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
340 × 132 × 287 mm (13.39 × 5.20 × 11.30 in)
Weight
8.60 kg (19.0 lbs)
Form factor
Base Station
Manufactured
Between 1986 and 1992 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
CW-filter options
Clock Timer
Dimmer
Noise Blanker
Notch Filter
Passband Tuning
RS232
RTTY demodulator
Scan/Sweep
Tone Control
Accessories
-
RigReference ID
3297
MPN
JRC-NRD-000525

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JRC NRD-525. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the JRC NRD-525 is around:

  • EUR 212.00 ~ EUR 51.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 EUR 400.00 Used / Okay f61112
2016 EUR 350.00 Used / Good oe3gas
2010 EUR 321.00 Used / Good eBay
